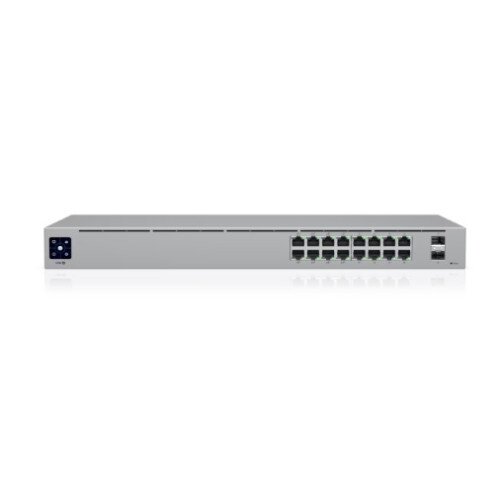

Ubiquiti Standard 16 PoE Network Switch
Ubiquiti Standard 16 PoE Network Switch Display Gallery Item 1
Ubiquiti Standard 16 PoE Network Switch - 2 Display Gallery Item 2
Ubiquiti Standard 16 PoE Network Switch - 3 Display Gallery Item 3
Ubiquiti Standard 16 PoE Network Switch - 4 Display Gallery Item 4

Ubiquiti Standard 16 PoE Network Switch - Shop Now and Save!

By: Ubiquiti

Model: USW-16-POE (42W)

Sku: 5ELMBPPKVV

Be the first to review this product

Sign up for price alert

$386.99

Availability: In Stock In Stock

New

  • Port Layout: 1 GbE RJ45: 16 (8 PoE+), (1G/100M/10M) / 1G SFP: 2, (1G)
  • Max. PoE Output: Up to PoE+
  • Total PoE Availability: 42W
  • Form Factor: Rack mount (1U)
  • Performance: Switching Capacity: 36 Gbps, Total Non-Blocking Throughput: 18 Gbps, Forwarding Rate: 27 Mpps, Supported VLANs: 1,000, MAC Address Table Size: 8,000, Packet Buffer Size: 0.5 MB / Access Lists: IPv4: 128, MAC: 128
  • LACP Port Aggregation
  • STP & RSTP
  • Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
  • IGMP Snooping
  • 802.1X Control
  • MAC-Based ACLs & Device Isolation
  • DHCP Snooping & Guarding
  • Egress Rate Limit
  • Flow Control
  • Storm Control
  • Multicast & Broadcast Rate Limiting
  • MAC Address Blocking
  • IP-Based ACLs & Network Isolation
  • MAC-Based Port Restriction
  • Port Isolation
  • Port Mirroring
  • Jumbo Frames
  • LLDP-MED
  • Voice VLAN
  • Loop Protection
  • PoE Ports: PoE+: 8
  • Max. PoE Wattage per Port by PSE: PoE: 15.4W, PoE+: 32W
  • Max. Power Consumption: 18W (Excluding PoE Output), 60W (Including PoE Output)
  • Power Method: Universal input, 100—240V AC, 50/60 Hz
  • Power Input Method: AC input
  • Power Supply: AC/DC, internal, 60W
  • Supported Voltage Range: 100—240V AC
  • Management: Ethernet, AR
  • Heat Dissipation (Excluding PoE Output): 61.416 BTU/hr
  • Enclosure Material: SGCC steel
  • Mount Material: SGCC steel
  • Supported Rack Depth: 400~1200 mm, (15.7-47.2")
  • LCM Display: 1.3" touchscreen
  • ESD Protection: Air: ± 16kV, contact: ± 12kV
  • Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
  • Ambient Operating Humidity: 10 to 90% noncondensing
  • NDAA Compliant
  • Certifications: CE, FCC, IC, Anatel
Quantity:
  • Add to Wishlist
  • Add to Compare

A 16-port, Layer 2 PoE switch with a silent, fanless cooling system.

In the Box

  • Ubiquiti Standard 16 PoE Network Switch
  • Power Cord
  • 2 x Rack-Mount Brackets
  • 8 x Bracket Screws
  • 4 x Mounting Screws
  • 4 x Cage Nuts
