By: Ubiquiti

Model: SM-SW-40

Sku: 8CE6FHKG0S

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Enclosure Characteristics: Steel, Indoor Use
  • Max. Power Consumption: 2W
  • Networking Interface: (4) 10/100 Fast Ethernet Ports
  • Management Interface: Ethernet + Wi-Fi (2.4 GHz)
  • Button: Reset
  • LEDs: System, Output
  • Power Source: PV Panel (H4 connectors)
  • PV Input Voltage Range: 10-60V, (Reverse Protection, Surge Protection)
  • Maximum Open Circuit Voltage: 60V
  • PV Maximum Current: 10A
  • PV Power Control: MPPT
  • Output Interfaces: 24VDC Passive PoE (Pins 4, 5+; 7, 8-), 24VDC Terminal Block
  • Output Voltage: Battery Voltage Limited to 24V, (Surge Protection)
  • Maximum Power Output: PoE: 17W, DC OUT: 24W, Max 40W Total
  • Battery Type: 24V SLA, AGM, Gel Lead Battery
  • Absorption Voltage Steps: 27.4V, 28.2V, 29.1V, 30V
  • Float Charge Voltage: 95% of Absorption Voltage
  • Max. Charge Current: 7A
  • Under Voltage Protection: 22 – 23.6V Software Configurable, 22V Hardware Protection
  • 2 Priority Levels for Output Disable
  • Operating Temperature : -20 to 50° C, (-4 to 122° F)
  • Certifications: FCC/IC/CE
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

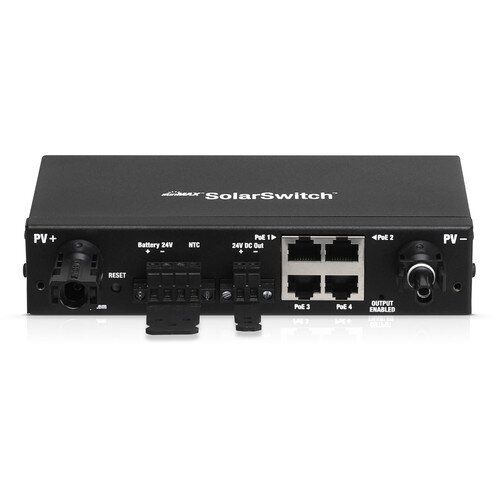

Remotely managed MPPT 24V 7A solar site charging appliance with a built-in, four-port, 24V PoE switch.

The SunMAX SolarSwitch is a remotely managed MPPT 24V 7A charging appliance with a built-in, four-port, 24V PoE, 10/100Mbps switch and one DC output that delivers up to 40W. It comes with built-in weather prediction service, which together with AI algorithms will provide you with critical information about your solar site`s existing and future performance.

  • Indoor or Cabinet(rack mountable) use
  • PV Panel Input 10 – 60V
  • 4-port 24V PoE output 10/100 switch
  • 24V DC-Out Terminal
  • Max output power 40W
  • External 24V Battery Charging up to 7Amps (supports SLA, AGL,AGM)

In the Box

  • Ubiquiti SunMAX SolarSwitch
