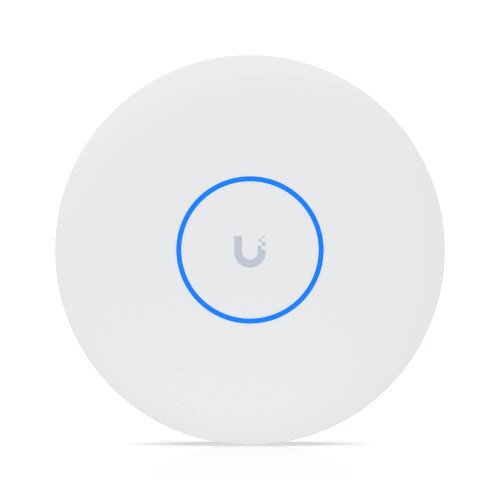

Ubiquiti U7 Pro XG WiFi 7 Access Point - White
Ubiquiti U7 Pro XG WiFi 7 Access Point - White Display Gallery Item 1
Ubiquiti U7 Pro XG WiFi 7 Access Point - White - 2 Display Gallery Item 2
Ubiquiti U7 Pro XG WiFi 7 Access Point - White - 3 Display Gallery Item 3
Ubiquiti U7 Pro XG WiFi 7 Access Point - White - 4 Display Gallery Item 4
Ubiquiti U7 Pro XG WiFi 7 Access Point - White - 5 Display Gallery Item 5

Ubiquiti U7 Pro XG WiFi 7 Access Point - White - Shop Now and Save!

By: Ubiquiti

Sku: JS0P1LYRT5

Be the first to review this product

Sign up for price alert

$254.99

$254.99

$254.99

Availability: In Stock In Stock

New

  • WiFi Standard: WiFi 7
  • Spatial Streams: 6
  • Coverage Area: 140 m² (1,500 ft²)
  • Max. Client Count: 300+
  • Uplink: 10 GbE
  • Mounting: Ceiling, Wall, (Lite Mount)
  • Power Method: PoE+
  • Max. Power Consumption: 22W
  • Supported Voltage Range: 42.5—57V DC
  • Networking Interface: (1) 10 GbE RJ45 port
  • Management: Ethernet
  • Enclosure Material: UV-stabilized polycarbonate, aluminum alloy
  • Mount Material: Stainless steel (SUS304), galvanized steel (SGCC)
  • LEDs: System: White/Blue
  • Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
  • NDAA Compliant: Yes
  • Certifications: CE, FCC, IC
  • Ambient Operating Temperature: -30 to 40° C (-22 to 104° F)
  • Ambient Operating Humidity: 5 to 95% noncondensing
  • Supported Data Rates: 802.11be (WiFi 7): 6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320), 5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240) / 802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) / 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) / 802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
  • Wireless Meshing: Yes
  • Band Steering: Yes
  • 802.11v BSS Transition Management: Yes
  • 802.11r Fast Roaming: Yes
  • 802.11k Radio Resource Management (RRM): Yes
  • Advanced Radio Management: Yes
  • Passpoint (Hotspot 2.0): Yes
  • Captive Hotspot Portal: Custom Branding Landing Page: Yes / Voucher Authentication: Yes / Payment-Based Authentication: Yes / External Portal Server Support: Yes / Password Authentication: Yes / Guest Network Isolation: Yes
  • Private Pre-Shared Key (PPSK): Yes
  • WiFi Speed Limiting: Yes
  • Client Device Isolation: Yes
  • WiFi Schedules: Yes
  • RADIUS over TLS (RadSec): Yes
  • Dynamic RADIUS-assigned VLAN: Yes
Quantity:
  • Add to Wishlist
  • Add to Compare

Ceiling-mounted 6-stream WiFi 7 AP with 10/5/2.5/1 GbE support.

  • WiFi 7 with 6 GHz support
  • 6 spatial streams
  • 140 m² (1,500 ft²) coverage
  • 300+ connected devices
  • Powered using PoE+
  • 10 GbE uplink

In the Box

  • Ubiquiti U7 Pro XG WiFi 7 Access Point
  • Mounting Kit
