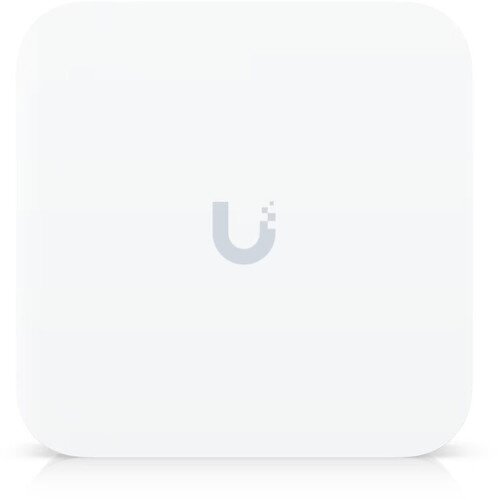

Ubiquiti UniFi Express 7 Cloud Gateway
Ubiquiti UniFi Express 7 Cloud Gateway Display Gallery Item 1
Ubiquiti UniFi Express 7 Cloud Gateway Display Gallery Item 2
Ubiquiti UniFi Express 7 Cloud Gateway - 3 Display Gallery Item 3
Ubiquiti UniFi Express 7 Cloud Gateway - 4 Display Gallery Item 4
Ubiquiti UniFi Express 7 Cloud Gateway - 5 Display Gallery Item 5

Ubiquiti UniFi Express 7 Cloud Gateway - Shop Now and Save!

By: Ubiquiti

Model: UX7-US

Sku: 2FX7GZP2C3

Be the first to review this product

Sign up for price alert

$236.99

Availability: In Stock In Stock

New

  • UniFi Application Suite: Network: Yes
  • Managed UniFi Devices: 30+, Simultaneous Users Connected: 300+
  • Max. WAN Port Count: 1, Default WAN Ports: (1) 10 GbE RJ45,
  • Port Layout: 2.5 GbE RJ45: 1 (2.5G/1G/100M/10M), 10 GbE RJ45: 1 (10G/5G/2.5G/1G/100M)
  • IDS/IPS Throughput: 2.3 Gbps, Form Factor: Compact desktop
  • Coverage Area: 160 m² (1,750 ft²)
  • Stateful Firewall: Yes Application-Aware Layer 7 Firewall: Yes DPI & Traffic Identification: Yes
  • Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps): Yes Content Filtering: Yes
  • Intrusion Prevention (IPS/IDS): Yes, Ad Blocking: Yes
  • IDS/IPS Signatures: 20,000+ with CyberSecure, VLAN/Subnet-based Traffic Segmentation: Yes
  • License-Free SD-WAN: Yes, Site-to-Site VPN: Site Magic: Yes, IPsec: Yes, OpenVPN: Yes
  • VPN Server: Identity Endpoint One-Click VPN: Yes, Teleport Zero-Configuration VPN: Yes, WireGuard: Yes, OpenVPN: Yes, L2TP: Yes
  • VPN Client: OpenVPN: Yes, WireGuard: Yes
  • Dynamic Routing: OSPF: Yes
  • Advanced QoS: Yes, Multicast DNS (mDNS): Yes, Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT): Yes
  • Integrated RADIUS Server: Yes, RADIUS over TLS (RadSec): Yes, Additional Internet Failover with UniFi LTE Backup: Yes
  • Internet Quality and Outage Reporting: Yes, Policy-based WAN and VPN Routing: Yes, Customizable DHCP Server: Yes
  • IPv6 ISP Support: Yes, IGMP Proxy: Yes, Virtual Network Override: Yes
  • WiFi Standard: 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7), Throughput: 6 GHz, 5.7 Gbps, 5 GHz, 4.3 Gbps, 2.4 GHz, 688 Mbps
  • MIMO: 6 GHz: 2 x 2 (DL/UL MU-MIMO), 5 GHz: 2 x 2 (DL/UL MU-MIMO), 2.4 GHz: 2 x 2 (DL/UL MU-MIMO),
  • Antenna Gain: 6 GHz: 6 dBi, 5 GHz: 7 dBi, 2.4 GHz: 4 dBi
  • Max. TX Power: 6 GHz: 24 dBm, 5 GHz: 26 dBm, 2.4 GHz: 23 dBm
  • Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
  • Max. BSSIDs: 4 per Radio (Gateway Mode), 4 per Radio (AP Mode)
  • Supported Data Rates: 802.11be (WiFi 7): 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320), 802.11ax (WiFi 6/6E): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160), 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160), 802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40), 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps, 802.11b: 1, 2, 5.5, 11 Mbps, 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  • Max. Power Consumption: 22W, Power Method: USB type C (5V DC/5A), Power Supply: USB type C (5V DC/5A), (Adapter included), Supported Voltage Range: 100—240V AC, Heat Dissipation: 75 BTU/hr, Processor: Quad-core ARM Cortex-A53 at 1.5 GHz
  • System Memory: 3 GB, Enclosure Material: Polycarbonate, LCM Display: 0.96" status display, Management: Ethernet, Bluetooth
  • LEDs: Ethernet:
  • Button: (1) Factory-reset, ESD/EMP Protection: Air: 8kV, contact: 4kV, Ambient Operating Temperature, -10 to 40° C (14 to 104° F)
  • Ambient Operating Humidity: 5 to 95% noncondensing, NDAA Compliant: Yes, Certifications: CE, FCC, IC, Anatel: 06656-25-08356
  • VLAN: 802.1Q, Guest Traffic Isolation: Yes
  • Application Requirements: UniFi Network: Version 9.0.108 and later
Quantity:
  • Add to Wishlist
  • Add to Compare

Mesh-scalable, super-compact 10G Cloud Gateway with integrated WiFi 7.

In the Box

  • Ubiquiti UniFi Express 7 Cloud Gateway
  • Ethernet Cable
  • Power Adapter
