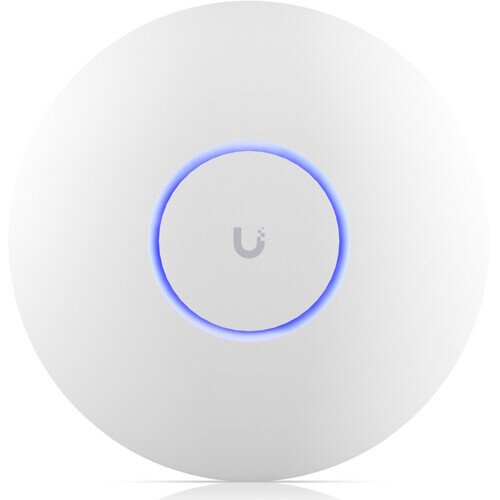

Ubiquiti UniFi U7 Pro Wifi 7 Access Point
Ubiquiti UniFi U7 Pro Wifi 7 Access Point Display Gallery Item 1
Ubiquiti UniFi U7 Pro Wifi 7 Access Point - 2 Display Gallery Item 2
Ubiquiti UniFi U7 Pro Wifi 7 Access Point - 3 Display Gallery Item 3
Ubiquiti UniFi U7 Pro Wifi 7 Access Point - 4 Display Gallery Item 4
Ubiquiti UniFi U7 Pro Wifi 7 Access Point - 5 Display Gallery Item 5

Ubiquiti UniFi U7 Pro Wifi 7 Access Point - Shop Now and Save!

By: Ubiquiti

Model: U7-Pro-US

Sku: E77WO1NI2A

Be the first to review this product

Sign up for price alert

$233.99

Availability: In Stock In Stock

New

  • Mechanical: Enclosure Material: Polycarbonate, metal, Mount Material: Stainless steel (SUS304), galvanized steel (SGCC)
  • Hardware: Networking Interface: (1) 1/2.5 GbE RJ45 port, Management interface: Ethernet
  • Power Method: PoE+, Power Supply: UniFi PoE switch, Supported Voltage Range: 44—57V DC
  • Max. Power Consumption: 21W
  • Max. TX power: 2.4 GHz: 22 dBm, 5 GHz: 26 dBm, 6 GHz: 23 dBm
  • MIMO: 2.4 GHz: 2 x 2(DL/UL MU-MIMO), 5 GHz: 2 x 2(DL/UL MU-MIMO) , 6 GHz: 2 x 2(DL/UL MU-MIMO)
  • Max. data rate: 2.4 GHz: 688 Mbps (BW40), 5 GHz: 4.3 Gbps (BW240), 6 GHz: 5.7 Gbps (BW320),
  • Antenna gain: 2.4 GHz: 4 dBi, 5 GHz: 6 dBi, 6 GHz: 5.8 dBi
  • LEDs: White/blue
  • Button: Factory reset
  • Mounting: Wall/ceiling
  • Ambient operating temperature -30 to 60° C (-22 to 140° F)
  • Ambient operating humidity 5 to 95% noncondensing
  • Certifications CE, FCC, IC
  • Software: WiFi standards: 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7), Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
  • BSSID: 8 per radio, VLAN: 802.1Q
  • Advanced QoS Per-user rate limiting
  • Guest traffic isolation: Supported
  • Concurrent clients: 300+
  • Supported Data Rates: 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps, 802.11b 1, 2, 5.5, 11 Mbps, 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps, 802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40), 802.11ac: 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160), 802.11ax (WiFi 6/6E): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160), 802.11be (WiFi 7): 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
  • Application Requirements: UniFi Network Version 8.0.26 and later, UniFi OS Version 3.2 and later
Quantity:
  • Add to Wishlist
  • Add to Compare

Ceiling-mounted WiFi 7 AP with 6 spatial streams and 6 GHz support for interference-free WiFi in demanding, large-scale environments.

  • WiFi 7 with 6 GHz support
  • 6 spatial streams
  • 140 m (1,500 ft) coverage
  • 300+ connected devices
  • Powered using PoE+
  • 2.5 GbE uplink

In the Box

  • Ubiquiti UniFi U7 Pro Wifi 7 Access Point
  • Mounting Plate
  • Hardware Kit
