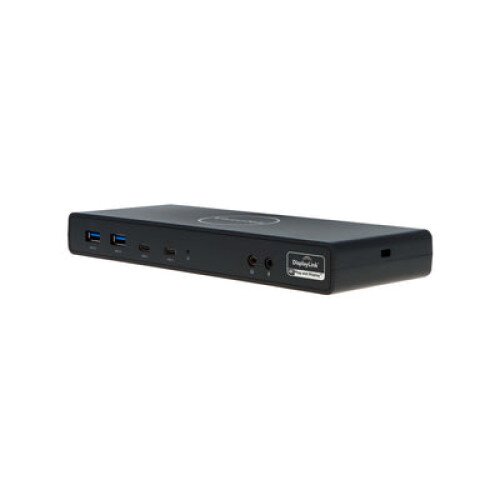

The VisionTek VT4510 Dual Display 4K Docking Station with Power Delivery allows you to easily connect your Windows , Mac or Chrome laptop to dual-4K displays and up to 8 accessories and peripherals through a single USB connection.
This high-quality dock is a single-cable solution that enables you to take full advantage of up to two additional 4K displays, 4 USB-A devices, 2 USB-C devices including full sized keyboard and mouse, external storage and mobile devices for charging and data transfer as well as up to 100W of Power Delivery.
- Supports 2 Displays (HDMI or DP) via DisplayLink
- USB-C or USB-A connection to host system
- 2x HDMI, 2x DP, 4x USB Ports, 2x USB-C, Audio, Ethernet, Kensington Lock
- 100W of Power Delivery via USB-C, USB-A does not provide power
- Universal Compatibility for USB 3.0 & Type-C
- Compatible with M1 Mac
- Supports up to 2 external displays
- Up to 100W USB-C Power Delivery
- 4 x USB 3.0 Ports 5Gbps
- 2 x USB-C Ports 5Gbps
- 2 x DisplayPort 1.2
- 2 x HDMI 2.0
- RJ45 Gigabit Ethernet Port
- Enterprise Features: Wake on LAN, MAC Address Pass-Through, PXE Boot
- Front Ports: 2 x USB 3.0 Ports, 2 x USB-C 3.1 Gen1 Ports, 3.5mm Audio Jack, 3.5mm Microphone Jack, Power Indicator Light - Blue LED When Powered On
- Back Ports: Power Switch, DC 20V/6.5A Power Supply Port, Gigabit Ethernet Port, 2 x HDMI Ports, 2 x DisplayPort Ports, 2 x USB 3.0 Ports, USB-C to System Port
- Display Outputs Supported: Single Display Support: DisplayPort: Resolutions up to 4096 x 2160 60Hz (4K), HDMI: Resolutions up to 4096 x 2160 60Hz (4K), Dual DisplayPort: Resolutions up to 5120 x 2880 60Hz (5K)
- Dual Display Support: DisplayPort + DisplayPort: Resolutions up to 4096 x 2160 60Hz (4K), HDMI + HDMI: Resolutions up to 4096 x 2160 60Hz (4K), DisplayPort + HDMI: Resolutions up to 4096 x 2160 60Hz (4K)
- Windows systems support up to two external displays extended or cloned
- macOS systems support up to two external displays extended or cloned with latest drivers
- Dock Connection: USB-C, USB 3.0
- Display Technology: DisplayLink
- Power Adapter: 130W - DC 20V/5A
- Power Delivery: Up to 100W
- Displays Supported: 2
- Maximum Resolution Supported: 2 x 4K 60Hz
- Video Interfaces: 2 x DP 1.2, 2 x HDMI 2.0
- Ports: (4) USB-A 3.0, (2) USB-C 3.1 Gen1, 3.5mm Audio Port, 3.5mm Microphone Port, RJ45 Gigabit Ethernet
- Cable Length: 1.0m - USB-C, 1.0m - USB-C - USB-A
- Operating Systems: Windows 10, Window 8.1, Windows 7, macOS 10.x and later Chrome
- Dock to System Connection: USB 3.0 Type A, USB-C 3.1, Thunderbolt 3
- Operating Temperature: 0 to 40° C (32 to 104° F)
- Storage Temperature: -10 to 70° C (-14 to 158° F)
- Relative Humidity: 10% to 90% non-condensing - Operational / Storage
