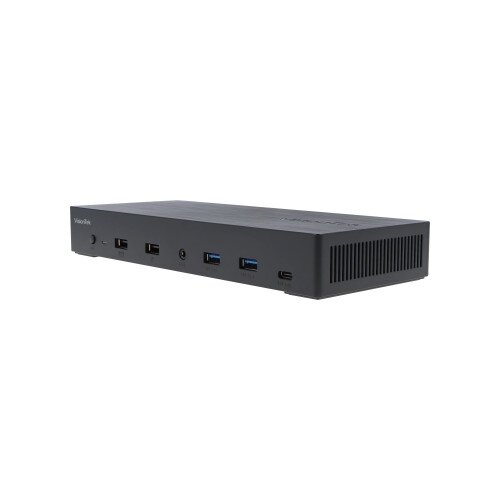

VisionTek VT4950 KVM USB-C Docking Station Dual Host 100W Power Delivery Triple 4K Display
VisionTek VT4950 KVM USB-C Docking Station Dual Host 100W Power Delivery Triple 4K Display Display Gallery Item 1
VisionTek VT4950 KVM USB-C Docking Station Dual Host 100W Power Delivery Triple 4K Display - 2 Display Gallery Item 2
VisionTek VT4950 KVM USB-C Docking Station Dual Host 100W Power Delivery Triple 4K Display - 3 Display Gallery Item 3
VisionTek VT4950 KVM USB-C Docking Station Dual Host 100W Power Delivery Triple 4K Display - 4 Display Gallery Item 4

Discover VisionTek VT4950 KVM USB-C Docking Station Dual Host 100W Power Delivery Triple 4K Display

By: VisionTek

Model: 901520

Sku: XYFAD6Y0YY

Be the first to review this product

Sign up for price alert

$453.99

Availability: In Stock In Stock

New

  • Dock Connection: USB-C 3.2 Gen 2
  • Display Technology: DisplayLink / DP Alt Mode
  • Power Adapter: 230W - DC 20V/11.5A
  • Power Delivery: Up to 100W per system
  • Displays Supported: 3
  • Maximum Resolution Supported: 1 x 4K @ 60Hz (4096 x 2160) DisplayPort or HDMI*, 2 x 4K @ 60Hz (4096 x 2160) DisplayPort + DisplayPort or DisplayPort + HDMI*, 3 x 4K @ 60Hz (4096 x 2160) DisplayPort + DisplayPort + HDMI*
  • Video Interfaces: (2) DP 1.4, (1) HDMI 2.0
  • Ports: (2) USB-A 3.2 Gen 2, (1) USB-C 3.2 Gen 2, (1) USB-A 2.0 Keyboard, (1) USB-A 2.0 Mouse, (1) 3.5mm Audio, (1) 3.5mm Microphone, (1) RJ45 Gigabit Ethernet
  • Cable Length: (2) 1m - USB-C 3.2 Gen 2
  • Operating Systems: Windows 11, Windows 10, Windows 8.1, Windows 7, macOS 10.10 and later, Chrome OS
  • System Support Requirement: USB-C Port, Note: Not all USB-C Ports will support the full functionality of the USB-C standard required by this docking station. Ensure that the Host Computer’s USB-C Port supports DP Alt Mode, as well as USB Power Delivery. In order to output to 4K @ 60Hz over HDMI, the Host Computer must support DP 1.4. For best compatibility Host Computer with USB-C 3.2 Gen 2 ports recommended.
  • Dock to System Connection: USB-C
Quantity:
  • Add to Wishlist
  • Add to Compare

The VisionTek VT4950 USB-C KVM Docking Station allows you to easily connect two Windows, Mac or Chromebook laptops to up to three 4K displays, accessories and peripherals through a single USB-C connection on each system while delivering up to 100W power delivery to each system.

  • Supports 2 Displays via DisplayLink and 1 Display via DisplayPort over USB-C
  • Dual USB-C connections to Host systems
  • HDMI, 2x DP, 4x USB, 1x USB-C, Audio, Ethernet, Kensington Lock
  • 100W of Power Delivery via USB-C to each system
  • Universal compatibility with USB-C, Thunderbolt 3 and Thunderbolt 4 systems
  • Full compatible with M1 and M2 Mac
  • Supports up to 3 external displays
  • KVM Switching between two systems
  • Up to 100W USB-C Power Delivery for two systems*
  • 2 x USB-A 3.1 Gen 2 Ports 10Gbps
  • USB-C 3.1 Gen 2 Port 10Gbps
  • 2 x DisplayPort 1.4
  • HDMI 2.0
  • RJ45 Gigabit Ethernet Port
  • Kensington Security Lock Slot
  • Enterprise Features: Wake on LAN, MAC Address Pass-Through, PXE Boot

The VisionTek VT4950 USB-C KVM Docking Station allows you to easily connect two Windows, Mac or Chromebook laptops to up to three 4K displays, accessories and peripherals through a single USB-C connection on each system while delivering up to 100W power delivery to each system. Quickly switch the Keyboard, mouse and monitors using the quick switch button on the front of the dock or with a hotkey for seamless control of 2 systems simultaneously. Seamlessly transfer files across host systems with included software, whether you're moving data from a Chromebook, MacBook or PC.

Front Ports:

  • Display Mode Switch Button
  • USB 2.0 Keyboard Port
  • USB 2.0 Mouse Port
  • 3.5mm Audio/Microphone Combo Jack
  • 2 x USB 3.2 Gen 2 10Gbps Ports
  • USB-C 3.2 Gen 2 10Gbps Port

Side Ports: Kensington Security Lock Slot

Back Ports:

  • Power Switch
  • DC 20V/11.5A Barrel Power Port
  • USB-C 3.2 Gen 2 to Host System 1
  • USB-C 3.2 Gen 2 to Host System 2
  • HDMI Port
  • 2 x DisplayPort Ports
  • Gigabit Ethernet

Display Outputs Supported:

Single Display Support:DisplayPort: Resolutions up to 4096 x 2160 @ 60Hz (4K), HDMI: Resolutions up to 4096 x 2160 @ 60Hz (4K)*

Dual Display Support: DisplayPort: Resolutions up to 4096 x 2160 @ 60Hz (4K), HDMI: Resolutions up to 4096 x 2160 @ 60Hz (4K)*

Triple Display Support: DisplayPort: Resolutions up to 4096 x 2160 @ 60Hz (4K), HDMI: Resolutions up to 4096 x 2160 @ 60Hz (4K)*

USB-C 3.2 Gen 2 Connectivity:

USB-C Compatibility – Compatible with USB-C and Thunderbolt™ 3 / 4 systems running Windows, macOS or Chrome OS, making this an ideal KVM switch docking station for environments with a variety of systems. The VT4950 comes with two USB Type-C to C cables for ease of setup with host systems.

Connect up to 3 Displays

Increase productivity by expanding your workspace with up to three additional displays for a single system, you can also switch and share displays between systems.

In the Box

  • VisionTek VT4950 KVM USB-C Docking Station Dual Host 100W Power Delivery Triple 4K Display
  • 2 x USB-C 3.2 Gen 2 Cables (1m)
  • 230W - DC 20V/11.5A Certified Power Adapter
  • User Manual
