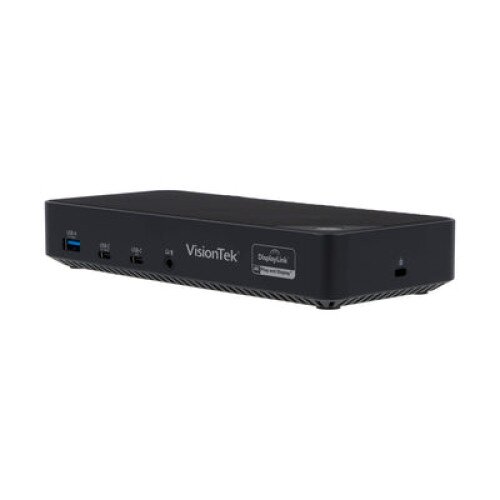

The VisionTek VT7000 Triple Display 4K Docking Station with 100W Power Delivery allows you to easily connect your Windows , Mac or Chrome laptop up to three 4K displays and up to 8 accessories and peripherals through a single USB connection.
This high-quality dock is a single-cable solution that enables you to take full advantage of up to three additional 4K external monitors, 3 USB-A devices, 2 USB-C devices (including full sized keyboard and mouse), external storage, mobile device charging, and data transfer ports. Supports up to 100W Power Delivery.
- Supports 2 Displays (HDMI or DP) via DisplayLink
- Supports 1 Display (HDMI) via DP Alt Mode
- USB-C or USB-A connection to host system
- 2x HDMI (DisplayLink), 2x DP (DisplayLink), 1x HDMI (DP Alt Mode), 2 x USB-A (5Gbps), 1 x USB-A (10Gbps), 1 x USB-C (5Gbps), 1 x USB-C (10Gbps), Audio/Mic, Ethernet, Kensington Lock
- 100W of Power Delivery via USB-C, USB-A does not provide power
- Universal Compatibility for USB 3.0 & Type-C
- Full Compatible with M1 Mac
- Supports up to 3 external displays
- Up to 100W USB-C Power Delivery
- 2 x USB-A 3.0 Ports 5Gbps
- USB-A 3.1 Gen 2 Port 10Gbps
- USB-C 3.0 Port 5Gbps
- USB-C 3.1 Gen 2 Port 10Gbps
- 2 x DisplayPort 1.2
- 3 x HDMI 2.0
- RJ45 Gigabit Ethernet Port
- Enterprise Features: Wake on LAN, MAC Address Pass-Through, PXE Boot
- Front Ports: USB-A 3.0 Port , USB-C 3.0 Port , USB-C 3.1 Gen2 Port , 3.5mm Audio/Microphone Combo Jack,
- Side Ports: USB-C to System, Kensington Security Lock Slot, Power Button (Top)
- Back Ports: DC 20V/6.5A Power Supply Port, Gigabit Ethernet Port, 2 x USB-A 3.0 Ports, 2 x HDMI Ports (DisplayLink), 2 x DisplayPort Ports (DisplayLink), HDMI Port (DP Alt Mode)
- Display Outputs Supported: Single Display Support: DisplayLink Ports: DisplayPort: Resolutions up to 4096 x 2160 60Hz (4K), HDMI: Resolutions up to 4096 x 2160 60Hz (4K)
- DP Alt Mode HDMI: HDMI: Resolutions up to 4096 x 2160 60Hz (4K)
- Dual Display Support: DisplayLink Ports: DisplayPort + DisplayPort: Resolutions up to 4096 x 2160 60Hz (4K), HDMI + HDMI: Resolutions up to 4096 x 2160 60Hz (4K), DisplayPort + HDMI: Resolutions up to 4096 x 2160 60Hz (4K)
- DP Alt Mode HDMI: HDMI: Resolutions up to 4096 x 2160 60Hz (4K)
- Triple Display Support: DisplayLink Ports: DisplayPort + DisplayPort: Resolutions up to 4096 x 2160 60Hz (4K), HDMI + HDMI: Resolutions up to 4096 x 2160 60Hz (4K), DisplayPort + HDMI: Resolutions up to 4096 x 2160 60Hz (4K)
- DP Alt Mode HDMI: HDMI: Resolutions up to 4096 x 2160 60Hz (4K)
- Dock Connection: USB-C, USB 3.0
- Display Technology: DisplayLink, DP Alt Mode
- Power Adapter: 130W - DC 20V/6.5A
- Power Delivery: Up to 100W
- Displays Supported: 3
- Maximum Resolution Supported: 3 x 4K 60Hz , Max resolution from DP Alt Mode HDMI is host system dependent
- Video Interfaces: 2 x DP 1.2 (DisplayLink) 2 x HDMI 2.0 (DisplayLink) HDMI 2.0 (DP Alt Mode)
- Ports: (2) USB-A 3.0 (5Gbps), USB-A 3.1 Gen2 (10Gbps) , USB-C 3.0 (5Gbps) , USB-C 3.1 Gen2 (10Gbps) , 3.5mm Audio/Microphone Combo Port , RJ45 Gigabit Ethernet,
- Cable Length: 1.0m - USB-C, 1.0m - USB-C - USB-A
- Operating Systems: Windows 10, Window 8.1, Windows 7, macOS 10.x and later Chrome
- Dock to System Connection: USB 3.0 Type A, USB-C 3.1, Thunderbolt 3
- System with USB-C 3.1 Gen2 port that supports USB-C Charging and DP Alt Mode recommended for best performance
