Wacom Cintiq Pro 16 Creative Pen Display Touch - Shop Now and Save!

By: Wacom

Model: DTH1620AK0

Sku: C4166JIV6V

Availability: Out of stock New

Availability: Out of stock

  • Display Size: 15.6 inch (39.6 cm)
  • Resolution: Up to Ultra HD (3840 x 2160)
  • Advanced Control: 8192 levels pen pressure
  • Compatibility: Windows Mac
  • Productivity Boosters: Time‑saving onscreen settings; ExpressKeys, Touch Ring on optional ExpressKey Remote
  • Ergonomics: Built-in stand (5° w/o legs or 20°w/ legs). Optional 3-position stand available.
  • Technology: IPS UHD high brightness panel
  • Displayable Colors (maximum): 16.7 million
  • Aspect Ratio: 16:9
  • Viewing Angle: 176° (88°/88°) H, (88°/88°) V
  • Contrast Ratio: 1000:1
  • Brightness: 250 cd/m2
  • Response Rate: 25 ms
  • Active Area: 345 x 194 mm (13.6 x 7.6 in)
  • Color Gamut: 94% Adobe RGB (CIE 1976)
  • Industry Standard Pre-sets: 6500° K whitepoint default
  • Graphics Input: USB-C (for up to 3840 x 2160 resolution), or Mini DisplayPort (for up to 2560 x 1440 resolution) using included Wacom Link
  • Pressure Levels: 8192, both pen tip and eraser
  • Tilt Range: 64 degrees
  • Tilt Recognition: ±60 levels
  • Type: Pressure-sensitive, cordless, battery-free
  • Switches: Tip switch, 2 side switches, eraser
  • Nibs: 10 (6 standard, 4 felt)
  • Pen Box/ Holder: Yes - Pen Holder
  • Grip: Latex-free silicone rubber
  • Technology: Patented electromagnetic resonance method
  • Resolution: 5080 lpi
  • ExpressKeys: 17 customizable, application-specific on optional ExpressKey Remote
  • Touch Ring: Yes - on optional ExpressKey Remote
  • Rocker Ring And Home Button: Yes - on optional ExpressKey Remote
  • Stand Adjustability: Integrated pop-out legs for 20° angle; optional detachable 3-angle stand
  • Orientation: Right or left-handed use
  • Cables Included: Wacom Link adapter with USB-C, Mini DisplayPort and USB cables
  • PC And Mac Connection: USB-C to USB-C port supporting DisplayPort Alternate Mode (for up to 3840x2160 resolution), or Wacom Link using Mini DisplayPort and standard USB Type-A port (for up to 2560x1440 resolution)
  • Audio: Audio headset jack included
  • Power Supply Input: 100 to 240 VAC, 50/60Hz
  • Power Supply Output: 20 VDC, 2.25 A (max)
  • Power Consumption: Max. Power Consumption: 33 W, 3 W or less when asleep 0.5 W or less in sleep mode (USB non-connected) or OFF mode.
  • Security: Kensington MiniSaver Mobile Lock Slot (lock purchased separately)
  • System Requirements PC: Windows 7 or later, Mac: OS X 10.10 or later, USB-C port supporting DisplayPort Alternate Mode (for up to 3840 x 2160 resolution), or Mini DisplayPort and standard USB Type-A port (for up to 2560x1440 resolution), internet access
  • Certifications: VCCI Class B, FCC Part 15 Subpart B (class B) and C, CE, IC ICES-003 and 210, RCM, KCC, BSMI, C-tick, CB, CCC, GOST-R, China RoHS, Korean RoHS, EU RoHS
  • Additional Accessories: ExpressKey Remote, Wacom Stand, Wacom Soft Case, Wireless Bluetooth® Keyboard, Prior generation pens (Pro, Classic, Art, Airbrush, Grip)
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

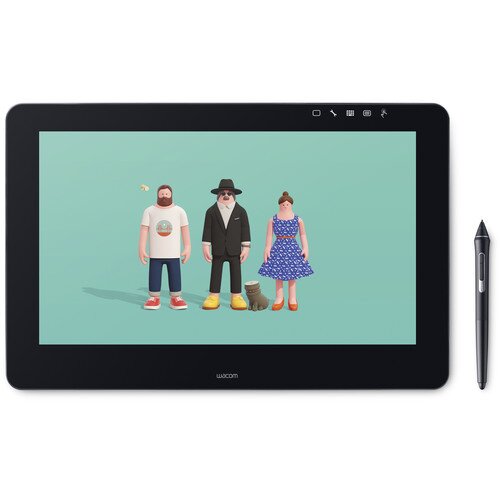

Wacom Cintiq Pro 16"

Create directly on screen with our most natural pen experience

Wacom Cintiq Pro 16 offers our latest Wacom Pro Pen 2 and screen technology – and more space to connect to your work. Whether you work on Mac or PC, Wacom Cintiq Pro is our most advanced creative pen display, built for professional artists and designers.

Wacom Pro Pen 2: natural and precise

Our state-of-the-art creative pen technology. 8,192 levels of pressure sensitivity and unparalleled tilt recognition means that every stroke, every move of your hand is followed with unerring accuracy.

Taking creativity to another dimension

Designed with 3D creativity in mind, the Wacom Pro Pen 3D provides full navigational control in 3D

Control at your fingertips

Three fully customizable pen buttons let you tumble objects, pan, zoom, model, sculpt or modify creative tools in 3D and 2D applications

Wacom Pro Pen 2 performance included

4x greater pressure sensitivity, exceptional tilt-response and lag-free tracking provide greater creative control

Ready to Create

Works with Wacom MobileStudio Pro, Wacom Cintiq Pro or Wacom Intuos Pro (2017 model) and with any Windows or Mac application

A resolution revolution

Your work is made to be seen. With stunning Up to 4K resolution (3840x2160) and superb color accuracy, you won’t be able to take your eyes off it.

The 16-inch screen gives you the broad canvas you need to add those little flourishes; while the anti-glare, etched-glass surface means you can create in comfort – with the familiar feel of pen on paper – until you’re happy with the results. With plenty of space for your work and all the on-screen controls and tools you need, it’s perfect for creating anything you can imagine.

Introducing our latest feature: time.

With Wacom Cintiq Pro you can save precious seconds on every task.

Connect your way

Connect to your Mac or PC with the included Wacom Link Plus adapter. Use either the USB-C cable alone, or Mini DisplayPort and USB-A together. Alternatively, connect to your HDMI and USB-A ports with a high speed HDMI cable. Lastly, connect your Cintiq Pro power cable directly to the Wacom Link Plus for a one-cable solution to your Cintiq Pro 13 or 16 display.

Make it match you

The ExpressKey Remote* puts 17 programmable buttons within easy reach. The on-screen keypad and the radial menus offer further one-touch shortcuts.

A natural interface

Pan, zoom or rotate your work with multi-touch gestures - as simple as using your smartphone.

Delight in every detail

If you’re passionate about sweating the small stuff, Wacom Cintiq Pro 16 is the device for you. Its larger, high-definition display gives you the ability to hone in on every detail, making it perfect for painting, retouching and page layout.

For professional artists and designers who want to add a world-class pen-on screen creative experience to their Mac or PC, Wacom Cintiq Pro 16 offers Wacom’s most powerful array of capabilities in a new high-performance creative pen display that is small enough to easily move from computer to computer and place to place and yet has room for you to create.

In the Box

  • Wacom Cintiq Pro 16 Creative Pen Display Touch
  • Wacom Pro Pen 2 with color rings
  • Pen stand with 10 replacement nibs (6 standard, 4 felt)
  • Nib removal tool
  • Pen Holder
  • AC Adaptor
  • Power cable
  • Wacom Link Plus
  • Cleaning cloth
  • Quick start guide
