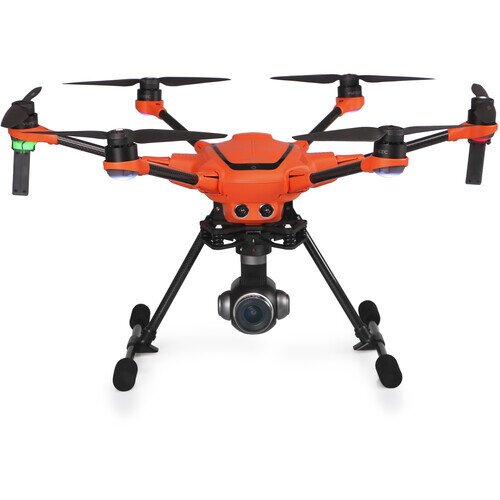

The H520E is designed with the inspection industry in mind with six-rotor systems that allow for stable, precise flight, long focal-length lenses that allow the sUAS to fly at greater distance from an object and data storage that may be shared instantly from the ST16S/E Ground Station or delivered directly in 4K/2K/HD video or 20 Mp still images.
Even in high-wind environments, the Yuneec H520E sUAS system is able to hold position, allowing the solution to fly even when a manned inspection would be deemed unsafe. Exclusive flight speed control offers slowest speed above stall flight for maximum precision in challenging environments. H520E’s landing gear retracts out of the way to give a full, 360 view of the world to capture important data in the field. Also Commercial, comprehensive service packages are available separately.
Your data belongs to you. The H520E Hexacopter and the ST16S/E remote control communicate directly, so there is no involuntary data transfer to servers in China, Germany or anywhere else in the world. Neither flight data nor images, videos or logfiles are forwarded to external servers and remain in your possession. Thus, your data is optimally protected.
Orbit Flight lets the H520E circle around the Pilot/ Remote Control in a user defined distance, always pointing the camera to the center of the circle.
All of our H520E cameras are hot swap-capable on our sUAS platforms, allowing for significant time-savings through not requiring a power-down/restart of the USA system. This also allows for consistency of data-storage, rather than using multiple storage devices and locations. Whether it’s thermal imaging, long focal length, or wide focal-length data capture, memory cards may be swapped from device to device.
The ST16S/E Ground Station is an all-inclusive transmitter and receiver that gives you full control over the H520E during flight, allowing users to capture photos and video with great base. With a large 7-inch integrated screen, the Android-based ST16S/E controller displays real-time footage of your flight, eliminating the need for an external device. You can also use the ST16S/E as a mission planner. Plan your flight using the touch screen, and execute your mission with just a single press of the button.
Yuneec DataPilot software system enables users to efficiently and consistently create orthomaps, 3D scans, crop data imagery, in the field or on the desktop for repeatable, recallable aerial flight paths, without requiring expensive third party software. Missions/flights may be stored for later recall/reflight, or planned off-site and transported to the control system via email, thumbdrive, or micro-SD card. DataPilot auto-generates survey paths with user-defined frontlap/sidelap, and cross-hatching for precision 3D or large format image output. DataPilot also allows for storage/caching of maps from many map providers for access in areas with no connectivity, and provides tools for precise waypoint placement even in areas where no updated maps are available.
Stay up-to-date with the YUNEEC UpdatePilot for the H520E with E90X camera. The app is available on the Google Play Store and allows you to check and automatically update your copter to the latest software version. After the app has been opened, WiFi and camera have been selected, you can search for software updates with one click on the “Check App Version” button and automatically download and install the latest update if necessary. Make sure that the H520E is switched on. Please note that the YUNEEC UpdatePilot can only be installed on the ST16E and a micro SD card must be inserted in the camera to accomplish the updates. Currently the YUNEEC UpdatePilot is only available for the H520E with E90X camera.
