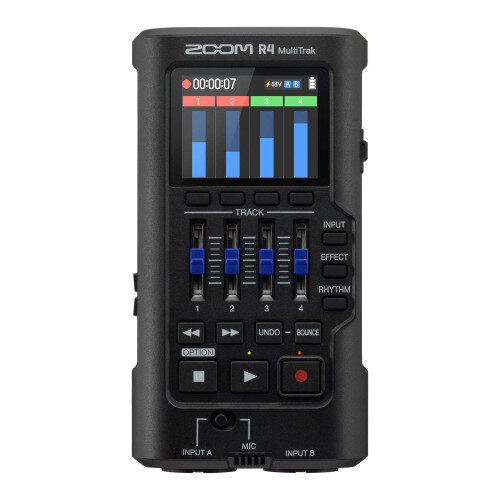

Zoom R4 MultiTrak 32-Bit Float Recorder - Shop Now and Save!

By: Zoom

Model: ZR4

Sku: 2H1BK6B3YM

$221.99

Availability: In Stock In Stock

New

  • Inputs: Built-in mic (mono): 1
  • XLR/TS inputs (mono): 2
  • Output: Headphones: 1
  • XLR/TRS inputs: Connectors: 2 XLR/TRS combo jacks (Balanced, XLR: 2 HOT)
  • Input gain: No adjustment required (dual A/D converter circuit used)
  • Input impedance: XLR: 2.3 kΩ
  • Maximum input level: XLR: +4 dBu
  • Phantom power: +48 V (switchable separately for INPUTS A and B)
  • Built-in mic input: Directionality: Omnidirectional
  • Input gain: No adjustment required (dual A/D converter circuit used)
  • Headphones: Connector: 1 stereo 3.5mm mini jack
  • Output impedance: 10 Ω
  • Maximum output level: 20 mW + 20 mW (into 32Ω load)
  • Maximum simultaneous recording tracks: 2
  • Recording format: WAV: 48kHz, 32-bit float, mono
  • Recording media: Cards compatible with microSDHC specifications 4 GB – 32 GB
  • Display: 2" full-color LCD (240 × 320)
  • Connector: USB Type-C
  • Audio interface function: Class: USB 2.0 High Speed
  • Sampling frequency: 48 kHz
  • Batteries: 4 AA (alkaline, lithium, or rechargeable NiMH)
  • AC adapter: ZOOM AD-17 (5V/1.0A)
Quantity:
  • Add to Wishlist
  • Add to Compare

Designed By Musicians

All of our engineers are musicians and they designed the R4 to empower musicians to explore big ideas. With a unique dedicated ‘bounce track’ and 32-bit float recording, the R4 is perfect for capturing your most ambitious compositions.

Record. Bounce. Repeat.

With the R4, you can record up to four tracks, mix and then bounce them to the dedicated ‘bounce track.’ This lets you free up additional tracks to keep adding layers.

You can choose to do a ‘quick’ bounce or mix and bounce in real time.

The R4 also allows you to ‘undo’ your last bounce, if you’re not satisfied with the results.

32-Bit Float Recording

The R4 captures perfect audio with every take, without the need to set gain.

Combo Inputs

The R4 has 2 XLR/TS combo inputs with legendary Zoom preamps. You can plug in microphones, instruments, keyboards, and more.

Track Effects

Each track features a 3-band EQ, pan, echo, and reverb to refine your mix.

Input Effects

Apply effects to input A such as amp simulations, delays, distortions and more.

Built-In Microphone

The R4 features a high-quality built-in microphone, perfect for acoustic guitars, vocals, or capturing a quick reference recording.

Much More Than A Metronome

The R4 has a rhythm section preloaded with over 80 different drum patterns to play along with featuring genres such as rock, hip hop, funk, heavy metal, and more.

Every Take Is Saved

Tracks that you record are automatically saved individually, even after they have been bounced.

32-Bit Float Audio Interface

The R4 is also a powerful 2-in/ 2-out USB audio interface with 32-bit float technology. Connect it to either your computer or smartphone.

Control and Create

With a fader for each track and dedicated hardware buttons for the most used functions, you won’t need to menu dive to record your music.

Powered For Your Ideas

The R4 can be powered by 4 AA Batteries, or through its USB-C port.

  • 4 Tracks of Recording + Dedicated Bounce Track
  • 2 XLR/TS combo inputs for guitar, bass, keyboards, microphones and more
  • Built-in Omnidirectional Microphone
  • Dual AD circuitry with 32-bit float recording technology
  • Color LCD Display
  • Built-in effects including EQ, Reverb, Compression, and Guitar effects
  • 4 Faders for Volume Control
  • USB Audio Interface Function
  • Runs on 4 AA batteries or external USB-C battery

In the Box

  • Zoom R4 MultiTrak 32-Bit Float Recorder
